1.7.3 Duplex Strainer Navigare Systems
Navigare Systems Duplex Basket Strainers use two filtration chambers, each rated for full flow capacity, allowing one chamber to remain in service while the other is isolated for screen maintenance. Changeover is achieved through diverting valves.

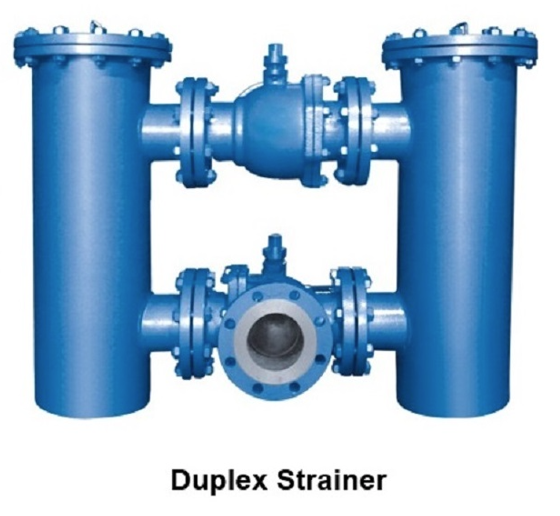

1.7.3 Duplex Strainer
Navigare Systems Duplex Basket Strainers use two filtration chambers, each rated for full flow capacity, allowing one chamber to remain in service while the other is isolated for screen maintenance. Changeover is achieved through diverting valves.
Typical ApplicationsContinuous-process systems where flow cannot be shut down for strainer maintenance, including pump suction and critical liquid services.
Product Standards & Specifications
Design StandardASME B16.34
Pressure / TemperatureASME B16.34
Face to FaceManufacturer Standard
TestingAPI 598 / BS EN 12266-1
Flange DetailsASME B16.5 up to 24″; ASME B16.47 26″ and above; DIN / BS / IS / JIS
Size Range1/2″ – 80″ (DN50 – DN2000)
ASME ClassClass 150 to 1500
MaterialsA105 / LF2 / LF3 / F316 / F304 / F316L / F51 / F55 / F6a / WCB / LCB / LCC / CF8M / CF8 / CF3M / 4A / 6A / Inconel
Fabricated VersionAvailable for sizes DN500 and above
Mesh5 to 500 microns
EndsFlange, Butt-weld, Socket Weld, Screwed
OperationManual
Product Details & Features
- Two filtration chambers with 100% capacity
- Diverting-valve changeover
- Allows screen service without shutting down flow
- Bubble-tight isolation between chambers
- Customisable valve arrangement
- Bolted, hinged, clamped and lifting-device cover options
- Permanent magnet option for magnetic dust separation

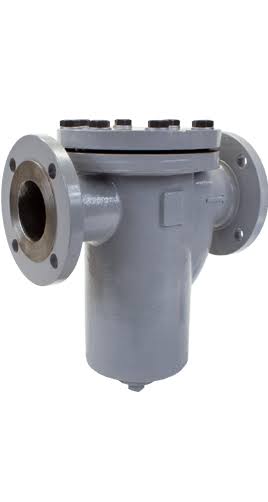

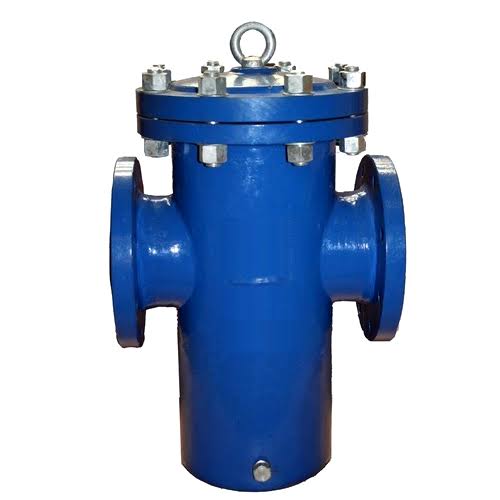

Product Image Gallery Supplied Product Photography
